Silicon-Carbon Batteries Explained: Why Phones Hit 7,000mAh

Two years ago a 5,000mAh battery was the ceiling for a flagship phone. This month you can buy a OnePlus 15 with 7,300mAh in a body thinner than an iPhone 17 Pro, and it is not a fluke of packaging. The reason is a change in one of the two electrodes inside the cell, from graphite to a silicon-carbon composite. This explainer covers what that change does, how much extra capacity it really buys, why the OnePlus 15 is the clearest example so far, and the durability trade-off that keeps Apple, Samsung and Google cautious.

Key takeaways

• "Silicon-carbon" describes the anode, the negative electrode. Silicon holds far more lithium per gram than graphite, so the same size cell stores more energy.
• Real-world gains are around 10 to 20% more energy density, not the tenfold jump raw silicon suggests, because only a fraction of the anode is silicon.
• The OnePlus 15 pairs a 7,300mAh silicon-carbon cell with 120W charging in an 8.1mm phone and set a battery-test record of more than 25 hours.
• Silicon swells as it charges, which damages the cell's protective layer over time. Silicon-carbon batteries can lose capacity faster in their first few years.
• The big three phone makers are also constrained by a 20Wh shipping-regulation threshold that a 5,000mAh cell already sits just under.

Why phone batteries suddenly got much bigger

For most of the 2010s and early 2020s, a flagship's battery capacity tracked its physical size. Bigger phone, bigger cell. Lithium-ion energy density improved by a couple of percent a year and that was that.

Then Chinese manufacturers started shipping a different anode material. Android Authority's survey of the technology lists the OnePlus 13 at 6,000mAh, the OPPO Find X8 Pro at 5,910mAh, the Xiaomi 15 Ultra at 6,000mAh in China, and Honor and Vivo models in the same range, all in bodies no thicker than before. As of December 2025 the OnePlus 15 has pushed that to 7,300mAh. The common thread in every one of these is a silicon-carbon anode.

Lithium-ion basics: what the anode actually does

A lithium-ion cell has two electrodes separated by an electrolyte. When you charge the phone, lithium ions leave the cathode (the positive side, usually a metal oxide) and lodge themselves in the anode (the negative side). When you use the phone, they flow back, releasing energy.

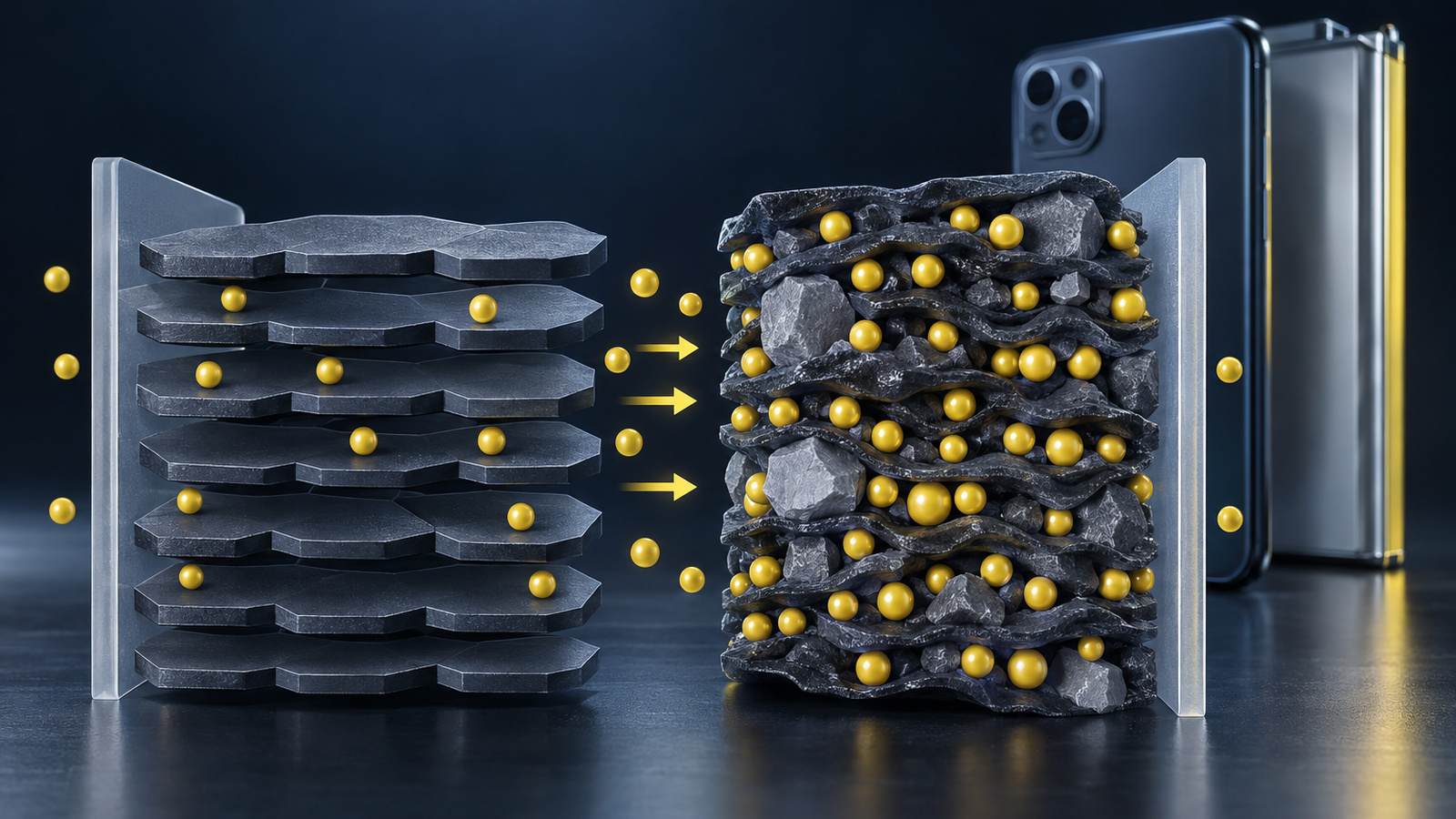

The anode is a parking garage for lithium. How much charge the cell can hold depends partly on how many ions the garage can fit. For thirty years that garage has been made of graphite, a form of carbon whose stacked, flat layers let lithium slide in between them. Graphite is cheap, stable and predictable, but it is not spacious: each carbon layer only accepts one lithium ion for every six carbon atoms.

Silicon vs graphite: how silicon stores more lithium

Silicon does not stack lithium between layers; it alloys with it, and each silicon atom can bond with almost four lithium atoms. That is the entire trick. Android Authority puts the theoretical numbers at 372mAh per gram for graphite against about 4,200mAh per gram for silicon, a tenfold difference.

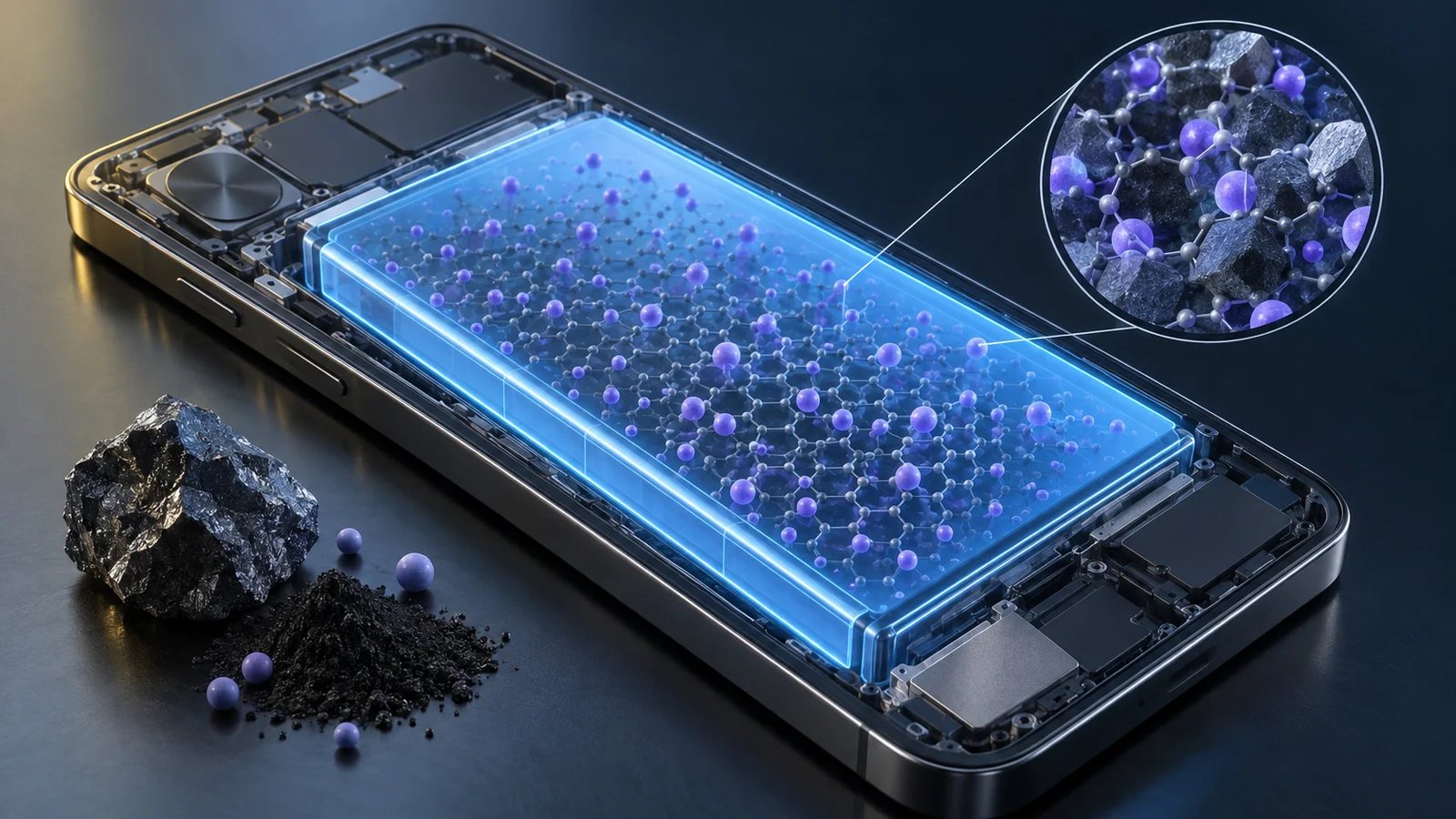

Nobody ships a pure silicon anode, though, because of the swelling problem covered below. Instead, manufacturers embed silicon particles in a carbon matrix, which is why the material is called silicon-carbon or Si/C. The carbon provides structure and conductivity; the silicon provides the extra storage. The result is still a lithium-ion cell; only the anode changes, from graphite alone to silicon blended or structured with carbon.

How much more capacity you really get

Because only part of the anode is silicon, the gain is real but modest. Android Authority estimates silicon-carbon cells deliver roughly 10 to 20% more energy density, depending on how much silicon the maker dares to use. Higher silicon content means more capacity and more of the durability risk.

Twenty percent sounds small until you apply it to a phone. Take a 5,000mAh graphite cell, swap the anode, and you get about 6,000mAh in the same volume. Use the newer, denser generation of silicon-carbon and shave the packaging, and 7,000mAh in a normal-sized phone becomes achievable. That is exactly the progression from the OnePlus 13 to the OnePlus 15.

Silicon-carbon also tolerates fast charging well, which is why these big cells tend to arrive with 80W to 120W charging rather than the 25W to 45W common on graphite flagships.

The OnePlus 15 as a case study: 7,300mAh in an 8.1mm phone

The OnePlus 15 launched globally on November 13, 2025, after a China launch in late October, with US open sales in mid-December at $899.99 for 12GB/256GB and $999.99 for 16GB/512GB. It runs the Snapdragon 8 Elite Gen 5 and has a 6.78-inch 165Hz display. The battery is the headline.

Scroll sideways to see the full table →

GSMArena's listings for the OnePlus 13 and the OnePlus 15 supply the table above; the newer phone measures 161.4 x 76.7 x 8.1mm and 211 to 215g with a 7,300mAh Si/C cell, and quotes OnePlus's charge figures of 50% in 15 minutes and 100% in about 40 minutes at 120W. OnePlus's US product page lists 80W wired charging for the North American model, with up to 100W from an optional dual-port adapter, so the 120W figure applies outside the US.

OnePlus calls its design Silicon NanoStack and says the anode is 15% silicon, which it describes as the highest share in the industry. That higher silicon fraction is why the jump from 6,000 to 7,300mAh happened in a single generation.

The endurance payoff is not subtle. Tom's Guide runs every phone through the same test, web browsing over cellular at 150 nits until the battery dies, and the OnePlus 15 lasted 25 hours and 13 minutes, a record for the test. For context, the same test gives the Galaxy S25 Ultra about 14.5 hours and the iPhone 17 Pro Max just under 18. The OnePlus 15 is not twice as efficient as those phones; it simply carries almost half again as much energy.

The catch: swelling, SEI damage and faster aging

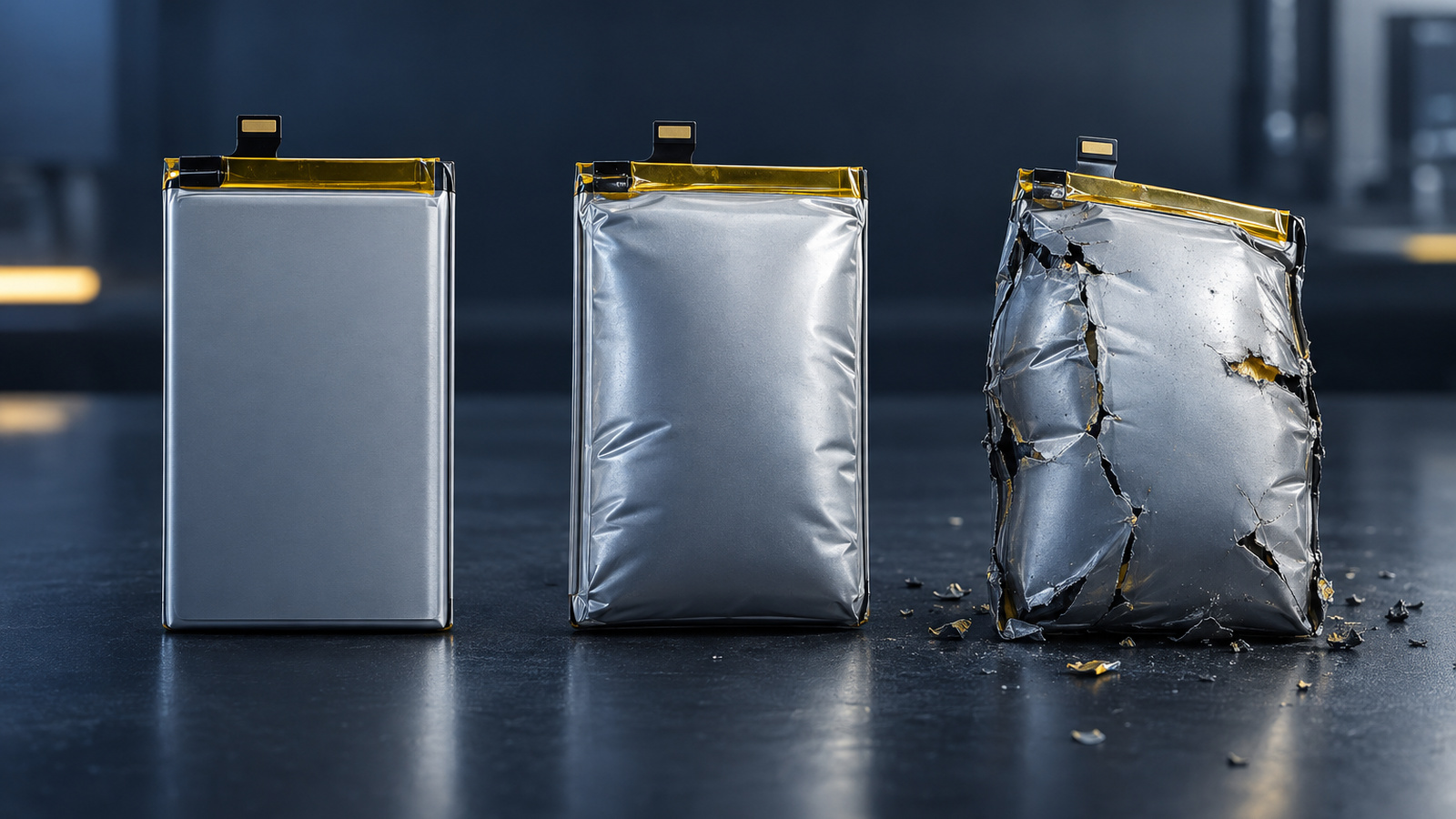

Here is the reason graphite lasted thirty years. When silicon absorbs lithium it physically grows. Android Authority notes that pure silicon can expand by up to 300% when fully charged, and while the carbon matrix limits a composite anode to something like 10 to 20% swelling, that is still more than the roughly 10% graphite experiences. Every charge cycle stretches and relaxes the material.

That movement attacks the cell's most important protective feature: the solid electrolyte interphase, or SEI. This is a thin film that forms on the anode during the first charges and stops the electrolyte from reacting with it further. On graphite the SEI forms once and stays put. On a silicon-rich anode, the swelling cracks the film, the exposed surface reacts with the electrolyte, a new film forms, and the process repeats. Each repair consumes lithium that can no longer carry charge. Over hundreds of cycles that shows up as lost capacity.

The practical effect, according to a battery engineer quoted by 9to5Google, is that silicon-carbon cells lose more capacity in their first two to three years than conventional ones. Android Authority reaches a similar conclusion: these cells will not last as long as the most durable graphite cells, though lower silicon content designs can come close.

Two things soften that. A phone that starts with 40% more capacity can lose more and still finish the day, and manufacturers can protect the cell in software. 9to5Google points out that Nothing ships the Phone (3) with a 5,500mAh silicon-carbon cell but caps it at 5,150mAh in most markets, partly for longevity. Whether a 7,300mAh cell is still comfortably above 5,000mAh after four years of daily charging is the question nobody can answer yet, because no one has owned one for four years.

Why Apple, Samsung and Google are slower to adopt it

If the technology is this good, why does a Galaxy S25 Ultra still ship with 5,000mAh? Three reasons.

Support windows. Apple, Samsung and Google now promise five to seven years of software updates. A battery that fades noticeably by year three undermines that promise and drives up warranty and replacement costs. As 9to5Google argues, the companies with the longest support commitments have the most to lose from a faster-aging cell.

Shipping rules. Individual lithium cells above 20Wh are classified as dangerous goods for US shipping, which adds cost and paperwork. 9to5Google calculates the Galaxy S25 Ultra's 5,000mAh cell at 19.4Wh and the Pixel 9 Pro's 5,060mAh at 19.68Wh. A 6,500mAh cell at the same voltage would cross the line. Chinese makers avoid this by splitting the battery into two cells, which adds complexity that the big three have so far not embraced.

Conservatism. Apple, Samsung and Google sell tens of millions of a single model. A battery recall at that scale is a very different problem from one at OnePlus's volume, so they wait for the chemistry to mature and for cycle-life data to accumulate.

None of that is permanent. Silicon fractions are rising, cycle-life data is improving, and the pressure from 7,000mAh competitors is obvious. But as of late 2025 the three largest phone makers are still on graphite.

What to look for when buying a silicon-carbon phone

• Ask how much silicon is in the anode. Higher means more capacity and more aging risk; OnePlus's 15% is the top of the current range.
• Look for a stated cycle rating. Some makers publish a figure such as retaining 80% capacity after a set number of cycles or years. Treat those as claims until independent testing confirms them.
• Use the charge limit. Both Android 16 and iOS 26 let you cap charging at 80%, which keeps the anode away from its most swollen state. Our guide to protecting battery health walks through the settings.
• Manage heat. Heat accelerates SEI damage on any chemistry and silicon is no exception. If your phone runs hot, our overheating fixes cover the causes.
• Check the replacement price. If the cell does fade early, a cheap official battery swap turns a problem into an errand. From 2027, EU rules push manufacturers toward replaceable or more durable batteries, which will help.

What comes next for phone batteries

Silicon-carbon is a stepping stone. The next moves are higher silicon fractions with better binders and coatings that survive the swelling, and eventually solid-state electrolytes that are far less sensitive to SEI damage. In the meantime, expect the mainstream to converge on 6,000 to 7,500mAh over the next two years, with the big three arriving last and most cautiously. The interesting number to watch is not peak capacity but capacity after 800 cycles, and the first phones old enough to report it are only just reaching that point.

For a buyer today the picture is simpler. Silicon-carbon anodes are the reason a phone like the OnePlus 15 can carry 7,300mAh in an 8.1mm body and run for over 25 hours on a test that leaves most flagships at 14 to 18. The chemistry is real and the gains are worth having. The cost is faster capacity loss over the first few years, which is why Apple, Samsung and Google are waiting. If you buy one now, enable the charge limit, keep it cool, and treat any longevity claim as a promise rather than a fact.
