How to Build a Budget AM5 Gaming PC: Step-by-Step Guide

Building your own gaming PC is less scary than it looks, and late 2025 is a good moment to do it on AMD's AM5 platform. This guide walks you through a real sub-$800 parts list, explains what each part does, and takes you through assembly in five steps, from seating the CPU to installing Windows. You will finish with a machine that plays current games well at 1080p and 1440p and has a clear upgrade path for years.

Why AM5 is the right platform for a first build in late 2025

The case for AM5 comes down to longevity. The socket already spans Ryzen 7000 and 9000 chips, AMD has committed to launching Zen 6 CPUs in 2026, and has promised new Ryzen chips for AM5 through 2027 and beyond. A cheap B650 board bought today should therefore accept at least one more generation of CPU.

That matters for a budget build because you can start with a modest six-core chip and drop in a Ryzen 7 9800X3D later without touching the motherboard or RAM. GamersNexus makes exactly this point in its October 2025 budget build: the AM5 platform "keeps the door open for a Ryzen X3D CPU upgrade later." Every board in the AMD chipset lineup also gives you DDR5 memory and PCIe 5.0, so nothing you buy now is a dead end.

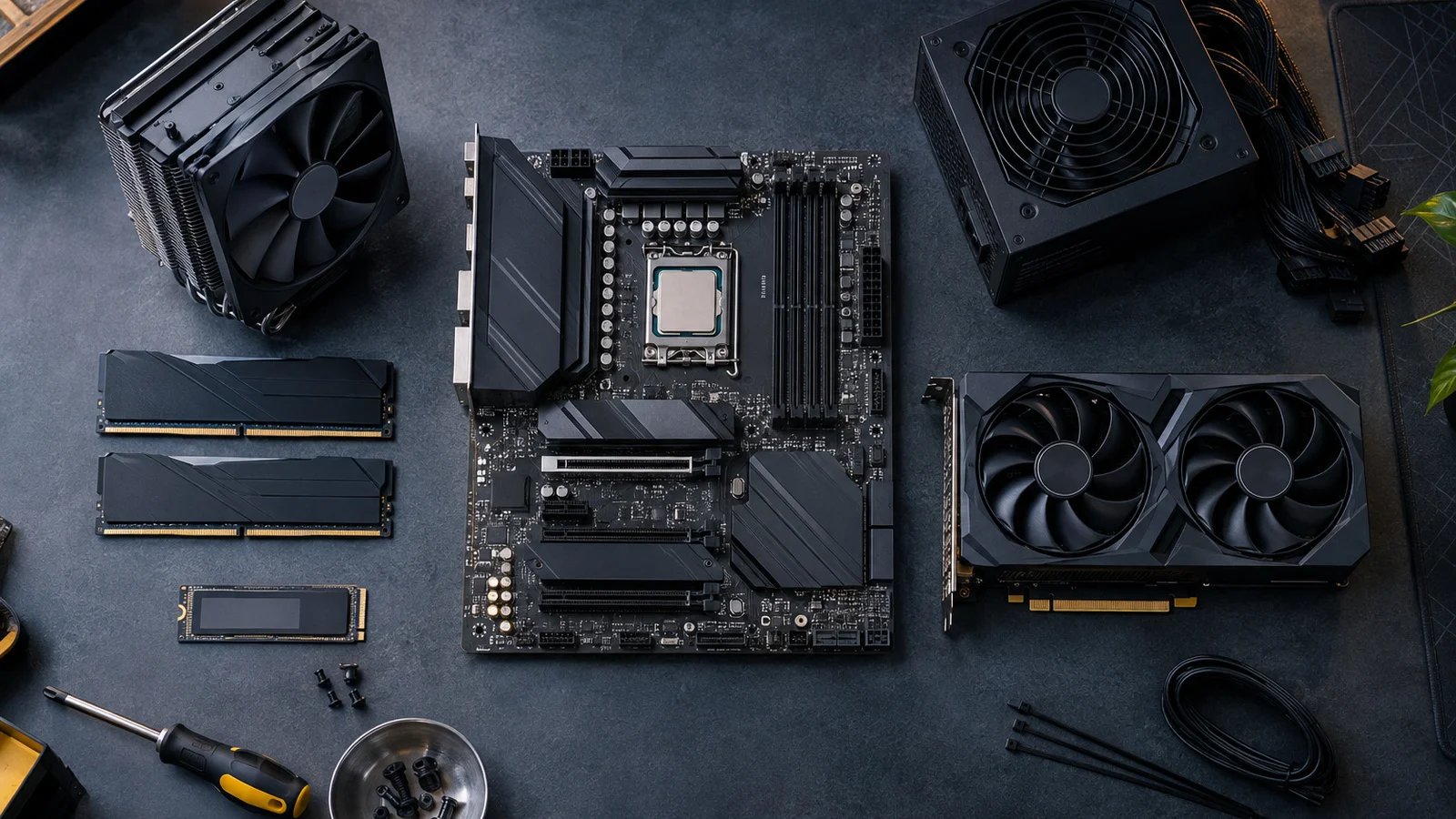

A real sub-$800 parts list (and what each part does)

Rather than invent a list, we are borrowing the one GamersNexus published on October 23, 2025, which totals $778. Prices are as of late October 2025; DDR5 and SSD prices in particular have been volatile, so check before you order.

Scroll sideways to see the full table →

Two notes. The 7500F has no integrated graphics, so nothing appears on screen until the graphics card is in. And the Arc B580 is excellent value at $250, but GamersNexus is blunt that Intel's GPUs "still have problems and frustrations that aren't as prevalent on NVIDIA and AMD." If you would rather not troubleshoot drivers, a Radeon RX 7600 or GeForce RTX 5060 is the safer swap.

If you want to spend more on the board, a B850 model sits between B650 and X870E; AMD's chipset comparison shows it guarantees a PCIe 5.0 M.2 slot and leaves PCIe 5.0 graphics and USB4 as options for the board maker. For a budget gaming build it is a nice-to-have.

Before you start: tools, workspace and anti-static basics

You need surprisingly little:

• A #2 Phillips screwdriver, ideally magnetic.
• A flat, hard, non-carpeted surface with good light.
• A USB stick of at least 8GB for the Windows installer, and another device to create it.
• Optional: an anti-static wrist strap, a few zip ties and a small flashlight.

Static electricity is the only real danger to your parts. Touch bare metal on the case before handling components, and keep the motherboard on its anti-static bag while you work on it outside the case. Tom's Guide's beginner walkthrough suggests setting aside at least three to four hours for a first build; add another hour or two for Windows and drivers. Read the first few pages of your motherboard manual first: it tells you which RAM slots to use, where the front-panel header is, and which M.2 slot is the fast one.

Step 1: Install the CPU and cooler on the motherboard

Do this on the table, not in the case; it is far easier with the board flat in front of you.

1. Place the motherboard on its anti-static bag on top of its box.
2. Push the socket's metal lever down and out, then lift it. The socket cover swings open with it.

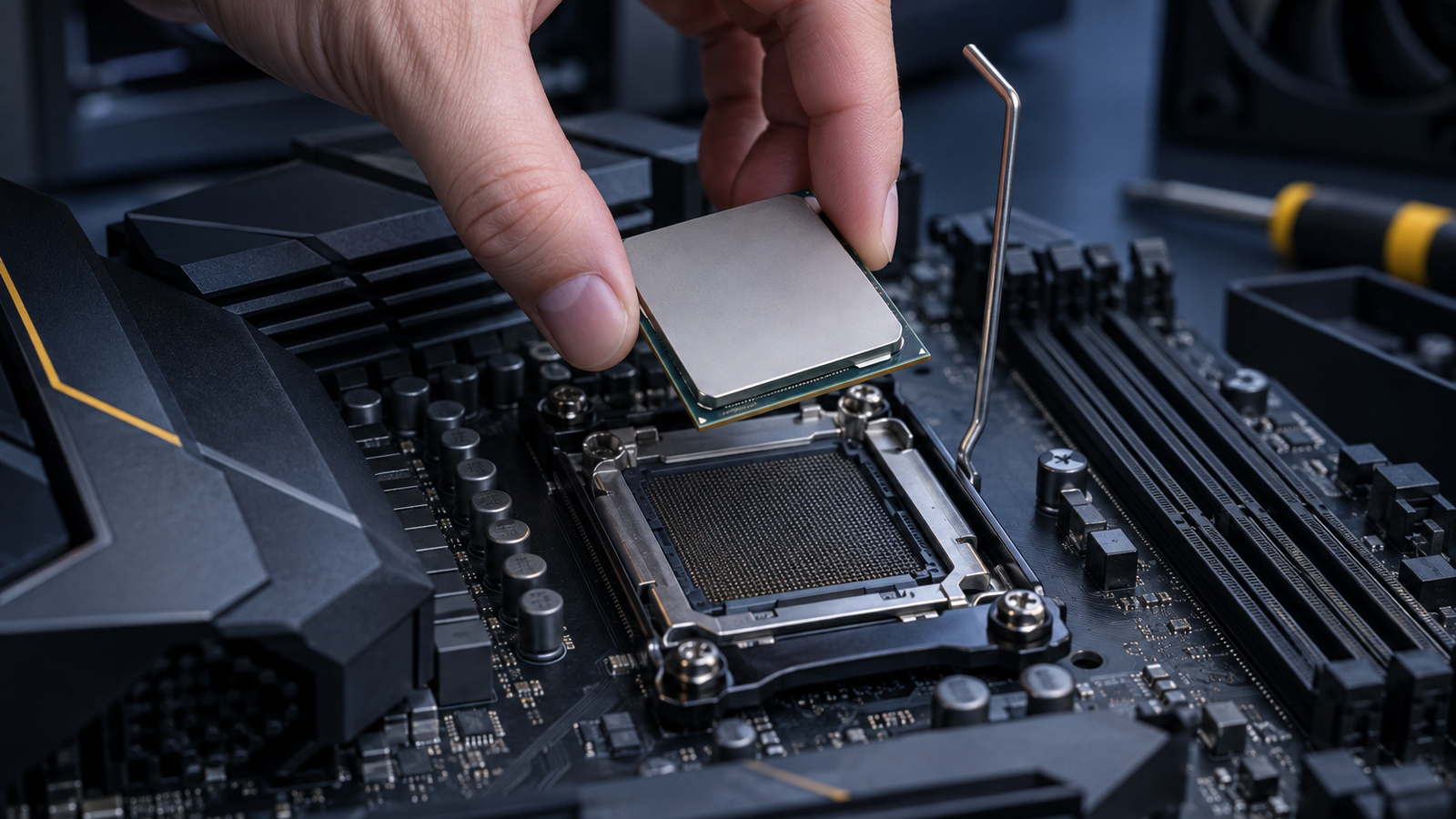

3. Hold the CPU by its edges and align the small golden triangle on its corner with the matching triangle on the socket.
4. Lower the CPU straight down. It should drop in with zero force. Never slide it or press on it: AM5's delicate pins are on the board, not the chip.
5. Lower the lever and lock it under its catch. It takes moderate pressure, and a plastic cover may pop off, which is normal.

Now the cooler. AM5 boards ship with a backplate already attached; most AM5 air coolers, including the Assassin Spirit 120 V2, remove the plastic clips and bolt their own bracket onto it. Follow the cooler's diagram exactly. If no paste is pre-applied, put a pea-sized dot in the center of the CPU; mounting pressure spreads it. Tighten the screws in a cross pattern, a few turns each, and plug the fan into the header labeled CPU_FAN.

Step 2: Seat the RAM in the right slots and add the M.2 SSD

Almost every four-slot AM5 board wants a two-stick kit in slots A2 and B2, the second and fourth counting from the CPU. Kingston's Ryzen memory guide and your manual both spell this out; the manual wins if they disagree. The wrong pair still works but leaves you in single-channel mode, which costs real frame rate.

1. Push the clips at the ends of both slots open.
2. Line up the notch on the module with the key in the slot. It only fits one way.
3. Press down firmly on both ends until the clips snap closed by themselves. DDR5 needs more force than people expect.

For the SSD, find the M.2 slot closest to the CPU (usually M2_1), remove the screw or latch at its far end, slide the drive in at a shallow angle, press it flat and secure it. If the slot has a heatsink, remove it first and peel the film off its thermal pad.

Step 3: Mount the board, PSU and graphics card in the case

1. Take both side panels off and lay the case on its side, open motherboard area facing up.
2. Check that the brass standoffs match the holes in your micro-ATX board. Remove any extras that would touch the underside of the board.
3. Snap the I/O shield into the rear of the case from the inside if it is separate, then lower the board in at a slight angle so the rear ports pass through it. Fasten with the case's motherboard screws, snug but not tight.
4. Slide the PSU into its bay at the bottom, fan facing the vent, and screw it in from the back.
5. Remove the slot covers that line up with the top PCIe x16 slot, open the slot latch, and press the graphics card in until it clicks. Screw its bracket to the case.
6. Mount the three 120mm fans with two at the front as intake and one at the rear as exhaust; the arrow on each frame shows airflow direction.

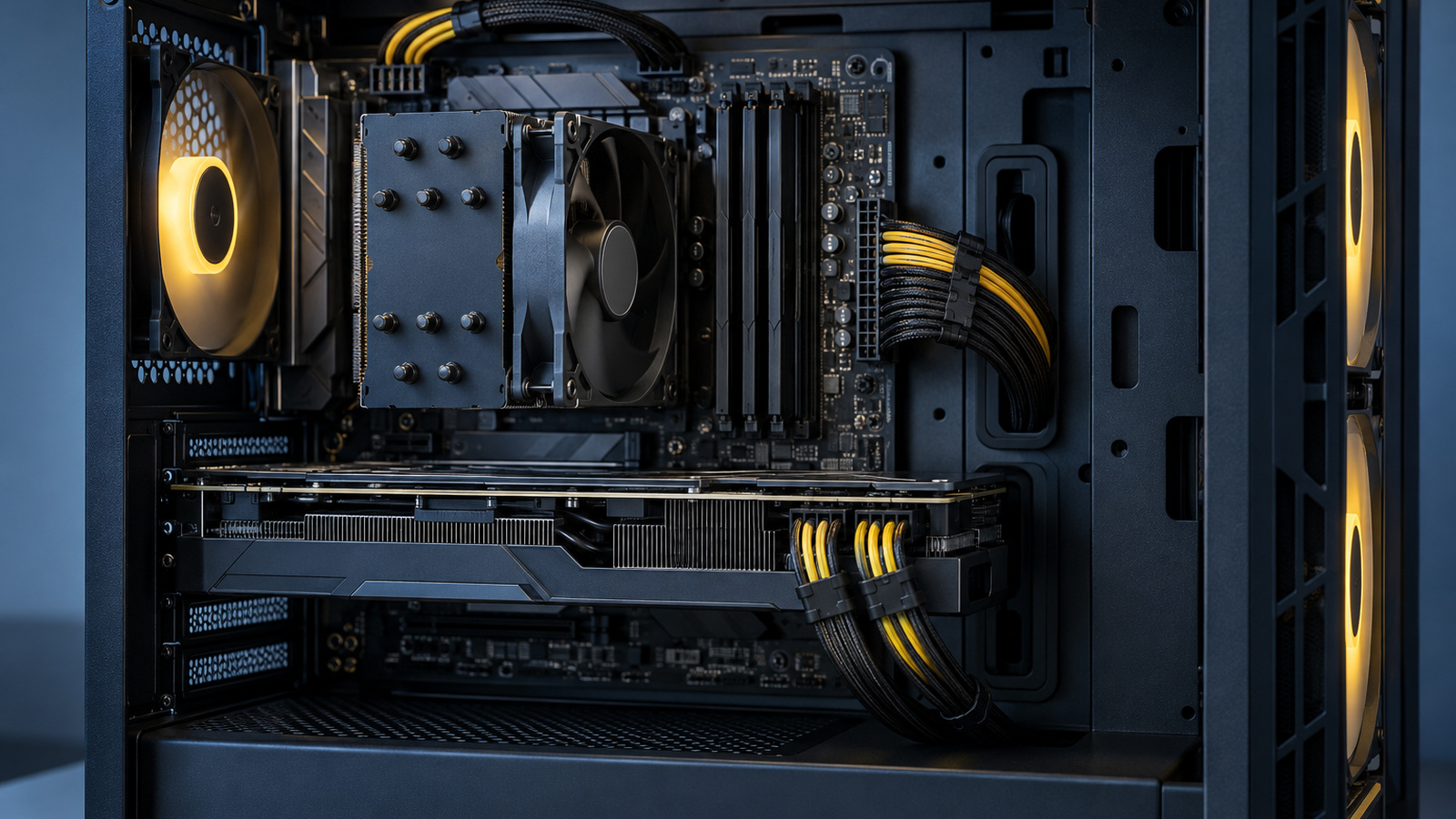

Step 4: Cabling: 24-pin, EPS, PCIe and front panel

Cabling is where first builds stall, but only five cables matter.

• 24-pin ATX: the widest connector, into the socket on the right edge of the board. Push until it clicks.
• 8-pin EPS (CPU power): top-left of the board, near the socket. It is labeled CPU on the PSU end and keyed differently from the PCIe cable.
• PCIe power: the Arc B580 Limited Edition takes a single 8-pin PCIe connector on a dedicated cable, not a daisy-chained pigtail.
• Front panel: the tiny power, reset and LED wires go onto a pin block whose layout is in the manual. Only the power switch is essential to boot.
• Fans and USB: fans to the SYS_FAN headers; the front USB 3.0 plug to the wide blue header on the board's edge.

Route thick cables behind the motherboard tray and tie them out of the fans. Tidy cabling is about airflow, not looks.

Step 5: First boot, BIOS, EXPO and installing Windows

Plug the monitor into the graphics card, not the motherboard, connect a keyboard, flip the PSU switch and press power. A new AM5 system often sits on a black screen for a minute or two while the board trains the memory. That is normal; do not switch it off.

1. Press Delete during boot to enter the BIOS. Confirm the CPU, all 32GB of memory and the SSD are detected.
2. Enable the memory profile. AMD EXPO is AMD's one-click way of running a DDR5 kit at its rated speed instead of the slower default; it is usually on the first BIOS page.
3. Check the BIOS version. A board older than the CPU may need an update before it will boot; 2025-vintage B650 boards should be fine with a 7500F.
4. Save and exit, boot from the Windows 11 USB stick and install to the SSD.
5. In Windows, install the AMD chipset driver, then the Intel Arc graphics driver, then run Windows Update.

Finally, run a game for twenty minutes with a free temperature monitor open. Puget Systems notes that most CPUs throttle at around 100°C; a 7500F on this cooler should stay in the 60s and 70s. If it does not, the cooler is probably not making full contact. Our laptop throttling guide explains how to read those numbers.

Troubleshooting a build that will not POST

Work through these in order; the first three cover most cases.

• No lights, no fans: check the PSU switch, the wall socket, that the 24-pin and EPS cables are fully seated, and that the power switch wire is on the right pins.
• Fans spin, no display: make sure the monitor is plugged into the graphics card, then reseat the RAM. Debug LEDs labeled CPU, DRAM, VGA and BOOT tell you what to reseat.
• Black screen for several minutes: memory training on a fresh AM5 build can take that long. Wait five minutes before assuming a fault.
• Only 16GB shows: one stick is not fully clicked in, or the sticks are in the wrong slots.

If everything fails, test the board on its box with only the CPU, cooler, one RAM stick and the GPU. Shorting the board against an extra standoff is the classic first-build mistake.

Upgrade path: what to swap first in a year or two

This is where AM5 pays off. In rough order of impact:

1. Graphics card. The B580 is the bottleneck at 1440p; a mid-range card in 2027 will roughly double your frame rates.
2. CPU. A Ryzen 7 9800X3D, or its successor, drops straight in after a BIOS update; our review of AMD's latest X3D chip shows what the extra cache does for games.
3. Storage. Add a second drive when the first fills up; PCIe 4.0 remains plenty for games.
4. PSU. A hungrier GPU may need more than 600W.

Memory prices are the wildcard; our DDR5 pricing piece tracks where that is heading.

A $778 AM5 build gets you a competent 1080p and 1440p gaming PC today and a motherboard that will accept Zen 6 chips in 2026. Take an afternoon, follow the steps in order, and do not force anything; the only tricky moments are seating the CPU and being patient on the first boot.
